Jb400 Yellow Optical Glass for Hair Removal Machine

Contact us

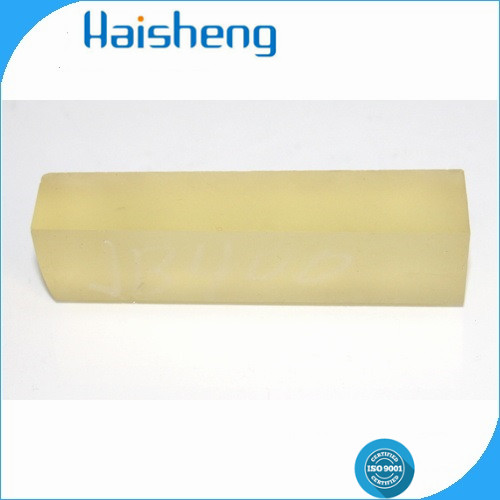

JB400 yellow optical glass


Product description:
  Nantong Haisheng Optical Co.,Ltd. can supply full range of filters. They are short pass Filter, long pass Filter, band pass Filter, ultraviolet Filter, infrared Filter, heat absorbing Filter, and color temperature conversion filters. We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.
Filters are designed by their manufacturers to transmit or absorb different wavelengths of light. And they are widely used in scientific experiments and industrial applications where that change is necessary.

ModelThicknessA[2856k]D65Chemical StabilityNDα×10-7TgTsS
(mm)xyYxyYDADW(/ºC)(ºC)(ºC)
JB40020.450.4196.30.3160.33694.2111.632954975553.65
JB42020.4550.41493.10.3230.34690.8231.632954975553.69
JB45020.4920.46194.70.4010.48890.7131.5231035276052.64
JB47020.4920.462960.4010.4992131.5231035276052.64
JB49020.5020.46894.50.4220.51489.6131.523 1035276052.64
JB51020.5190.47191.50.4560.52684121.5231035276052.64

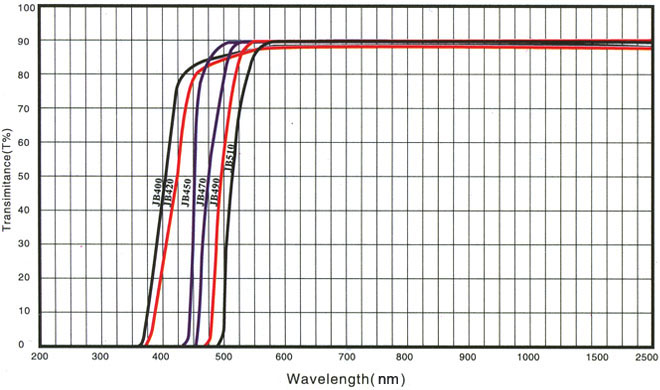

ModelThicknessλtjλ0Tλ0KBubblesStripeStress
(mm)(nm)(nm)(%)
JB4002400±10560≥86.0≥0.6C-B3C3
JB4202420±10560≥86.0≥0.6C-B3C3
JB4502450±10560≥89.5≥0.6C-B3C3
JB4702470±10560≥89.5≥0.8C-B3C3
JB4902490±10580≥89.5≥1.2C-B3C3
JB5102510±10600≥89.5≥1.2C-B3C3



Jb400 Yellow Optical Glass for Hair Removal Machine

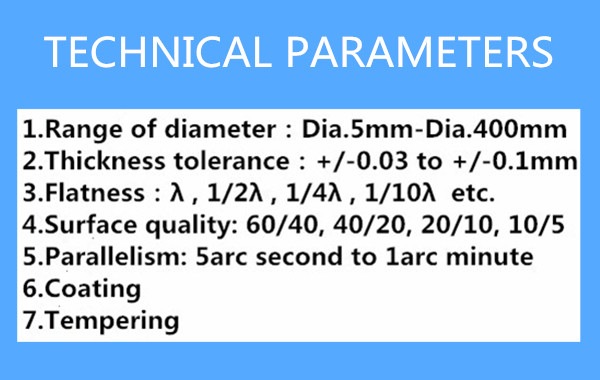

Technology Index:
Jb400 Yellow Optical Glass for Hair Removal Machine
