K9 material optical glass windows for IPL beauty machines

Contact us

Product description:

IPL glass windows is used for IPL photorejuvenation and photon hair removal.

This window can take advantage of  crystal good optical performance, making the skin surface temperature was contorlled effectively in a safe range , and subcutaneous the uniform heating of the dermis, which can effectively protect the skin surrounding tissue away from burns.


MaterialSapphire, fused silica, BK7,etc
Dimension specification

customized according to customers' needs

Dimension  tolerance+-0.05-1mm
Angle tolerance5'
Center thickness tolerance+-0.1mm
Surface accuracyLambda/2
Surface quality60/40 or better
Clear aperture>90%
Coatingaccording to customers' requirement

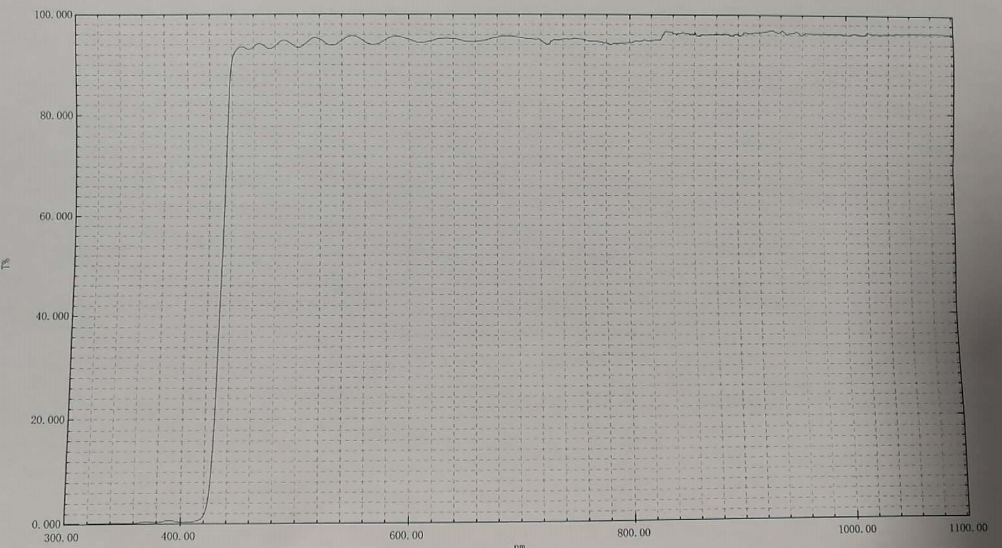

This glass window working wavelength from 430-1200nm in coating, you can choose different wavelength requirement.

K9 material optical glass windows for IPL beauty machines
